GMEntity Class Reference

This class stores the topological data relating geometry and mesh (e.g. nodes on lines, nodes on surfaces, elements on surfaces). More...

#include <GMEntity.h>

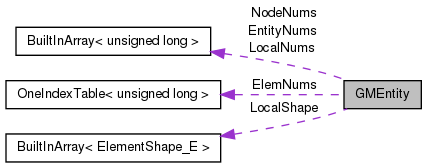

Collaboration diagram for GMEntity:

List of all members.

Public Member Functions
	GMEntity ()
	Default constructor.
	GMEntity (GMEntity &Instance)
	Copy-initializer constructor. Copies the contents of Instance to the object.
	~GMEntity ()
	Destructor.
GMEntity &	operator= (GMEntity &Instance)
	Copies the contents of Instance to the object.
Public Attributes
BuiltInArray< unsigned long >	EntityNums
	Stores the geometry mesh entities number.
BuiltInArray< unsigned long >	NodeNums
	Stores the node number associated to each keypoint sequentially in ascending order of the keypoint numbers.
OneIndexTable< unsigned long >	ElemNums
	Table that store the element numbers associated to each geometry mesh entity.
BuiltInArray< unsigned long >	LocalNums
	Array that store the element local of the geometry mesh numbers associated to each the other geometry mesh.
BuiltInArray< ElementShape_E >	LocalShape
	When a face of an element is on a superficie is needed to know what is the form of this face. If HEXA will be SQUARE and TRIANGLE for TETRA.

---

Detailed Description

This class stores the topological data relating geometry and mesh (e.g. nodes on lines, nodes on surfaces, elements on surfaces).

Author:

Gilberto Luis Valente da Costa

Date:

June/27/2011

---

Constructor & Destructor Documentation

GMEntity::GMEntity

(

GMEntity &

Instance

)

Copy-initializer constructor. Copies the contents of Instance to the object.

Parameters:

[in]

Instance

- instance of GMEntity.

Returns:

Reference to the current object.

---

Member Function Documentation

GMEntity & GMEntity::operator=

(

GMEntity &

Instance

)

Copies the contents of Instance to the object.

Parameters:

[in]

Instance

- instance of GMEntity.

Returns:

Reference to the current object.

---

Member Data Documentation

BuiltInArray<unsigned long> GMEntity::LocalNums

Array that store the element local of the geometry mesh numbers associated to each the other geometry mesh.

Note:

this attribute is used to geometry mesh key points, lines and surfaces. To key points, to each element of the attribute corresponds a node number. To lines, the element local edge number associated to a line. To surfaces, the element local face numbers associated to each surface.

---

The documentation for this class was generated from the following files:

• include/geometrymesh/GMEntity.h
• src/geometrymesh/GMEntity.cpp
