LineCollocationPoints Class Reference

Calculates the collocation points coordinates for the line element. More...

#include <LineCollocationPoints.h>

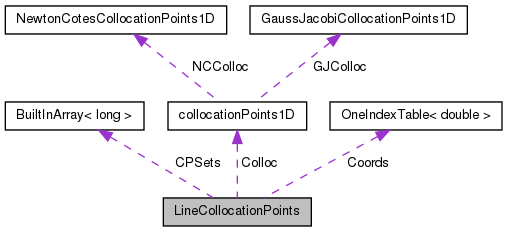

Collaboration diagram for LineCollocationPoints:

List of all members.

Public Member Functions
	LineCollocationPoints ()
	Default constructor.
	LineCollocationPoints (LineCollocationPoints &Instance)
	Copy-initializer constructor.
	~LineCollocationPoints ()
	Class destructor.
LineCollocationPoints &	operator= (LineCollocationPoints &Instance)
	Copies the contents of instance to the object.
void	SetMaxPolyOrder (unsigned long MaxOrder)
	Sets the maximum polynomial order for the line collocation points.
unsigned long	GetMaxPolyOrder ()
	Returns the maximum polynomial order for the line collocation points.
long	GetCollocationPointsSetNumber (unsigned long PolyOrder)
	Returns the set number of the collocation points for the given polynomial order.
unsigned long	GetTotalNumberCollocationPoints ()
	Returns the total number of collocation points.
unsigned long	GetNumberCollocationPoints (unsigned long PolyOrder, long &CollocationPointsSetNumber)
	Returns the number of collocation points for the given polynomial order and the collocation point set where they are stored.
unsigned long	GetNumberCollocationPointsSets ()
	Returns the number of collocation points sets stored in the class.
double *const	GetCollocationPointsCoords (unsigned long PolyOrder, unsigned long &NumberPoints)
	Returns the line collocation points for the given polynomial order.
void	RunCollocationPointsCoords (collocationPointsAttributes_S &CPAttributes, BuiltInArray< unsigned long > &PolyOrder)
	Calculates the line collocation points coordinates.
void	Convert2NaturalCoordinates ()
	Converts the coordinates from the interval [-1,1] to [0,1].
void	Convert2LocalCoordinates ()
	Converts the coordinates from the interval [0,1] to [-1,1].
void	Print (FILE *File)
	Prints the line collocation coordinates in the given ascii file.
Protected Attributes
collocationPoints1D	Colloc
	Instance of the collocationPoints1D to calculate the 1D collocation points coordinates.
OneIndexTable< double >	Coords
	Table that stores the collocation points coordinates.
unsigned long	Pmax
	Maximum polynomial order.
unsigned long	NumbCPSets
	Number of sets of collocation points used.
BuiltInArray< long >	CPSets
	This array has size for the maximum number of collocatiotion points, which it is calculated as Pmax + 1. The array stores for each number of points, the row number of the tables of coords storing the points. As the array is allocated for the maximum number of points, some positions may not be used. In this case, this array will store -1.

---

Detailed Description

Calculates the collocation points coordinates for the line element.

Author:

Fabiano Fernandes Bargos/Marco Lcio Bittencourt

Date:

March/15/2011

---

Constructor & Destructor Documentation

LineCollocationPoints::LineCollocationPoints

(

LineCollocationPoints &

Instance

)

Copy-initializer constructor.

Parameters:

[in]

Instance

- instance of the LineCollocationPoints class

---

Member Function Documentation

double *const LineCollocationPoints::GetCollocationPointsCoords	(	unsigned long	PolyOrder,
		unsigned long &	NumberPoints
	)

Returns the line collocation points for the given polynomial order.

Parameters:

[in]	PolyOrder	- polynomial order
[out]	NumberPoints	- Number of points for the polynomial order.

Returns:

double * const with the collocation points coordinates value.

long LineCollocationPoints::GetCollocationPointsSetNumber

(

unsigned long

PolyOrder

)

Returns the set number of the collocation points for the given polynomial order.

Parameters:

[in]

PolyOrder

- polynomial order

Returns:

a long type with the set number value.

unsigned long LineCollocationPoints::GetMaxPolyOrder

(

)

Returns the maximum polynomial order for the line collocation points.

Returns:

Maximum polynomial order as an unsigned long.

unsigned long LineCollocationPoints::GetNumberCollocationPoints	(	unsigned long	PolyOrder,
		long &	CollocationPointsSetNumber
	)

Returns the number of collocation points for the given polynomial order and the collocation point set where they are stored.

Parameters:

[in]	PolyOrder	- polynomial order for which the number of collocation points is requested.
[out]	CollocationPointsSetNumber	- number of the set where the collocation poins are stored.

Returns:

an unsigned long type with the number of collocation points.

unsigned long LineCollocationPoints::GetNumberCollocationPointsSets

(

)

Returns the number of collocation points sets stored in the class.

Returns:

an unsigned long with value the number of collocation points sets.

unsigned long LineCollocationPoints::GetTotalNumberCollocationPoints

(

)

Returns the total number of collocation points.

Returns:

an unsigned long with value the total number of collocation points.

LineCollocationPoints & LineCollocationPoints::operator=

(

LineCollocationPoints &

Instance

)

Copies the contents of instance to the object.

Parameters:

[in]

Instance

- instance of the LineCollocationPoints class

void LineCollocationPoints::Print

(

FILE *

File

)

Prints the line collocation coordinates in the given ascii file.

Parameters:

[in]

File

- pointer to the ascii file

void LineCollocationPoints::RunCollocationPointsCoords	(	collocationPointsAttributes_S &	CPAttributes,
		BuiltInArray< unsigned long > &	PolyOrder
	)

Calculates the line collocation points coordinates.

Parameters:

[in]	CPAttributes	- attributes for the collocation points
[in]	PolyOrder	- array with polynomial orders in ascending sequence

void LineCollocationPoints::SetMaxPolyOrder

(

unsigned long

MaxOrder

)

Sets the maximum polynomial order for the line collocation points.

Parameters:

[in]

MaxOrder

- maximum polynomial order.

---

The documentation for this class was generated from the following files:

• include/interpolation/collocationpoints/LineCollocationPoints.h
• src/interpolation/collocationpoints/LineCollocationPoints.cpp
