This class store the information for the elements including shape, mesh type, element order distribution, maximum element order, element order/incidence/nodal coordinates/dof numbering for each element and the local topological indices. The main purpose of this class is to collect all mesh data used during the generation of high-order nodes, solution and post-processing. More...

#include <Mesh.h>

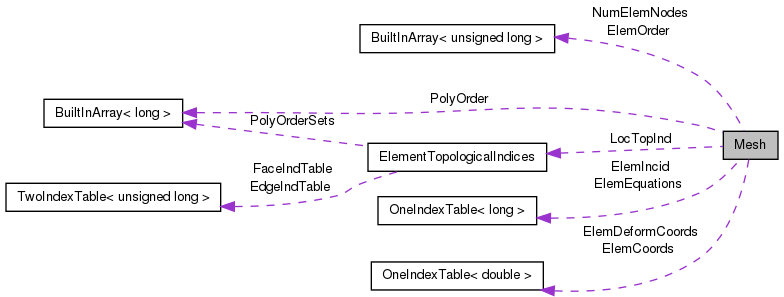

Collaboration diagram for Mesh:

[legend]

List of all members.

Public Member Functions
	Mesh ()
	Default constructor.
	Mesh (MeshID_E MshID)
	The constructo to set the mesh ID.
	Mesh (unsigned long NumberElements, ElementShape_E ElementShape, MeshType_E MeshType, pMesh_E pDistribution, unsigned long MaxPolyOrder=0)
	Constructor with parameters.
	Mesh (Mesh &Instance)
	Copy-initializer constructor. Copies the contents of Instance for the object.
	~Mesh ()
	Destructor.
Mesh &	operator= (Mesh &Instance)
	Copies the contents of Instance for the object.
	operator ElementTopologicalIndices & ()
	Cast operation for the instance LocTopInd of type LocalTopolgicalIndices.
ElementTopologicalIndices &	GetElementLocalTopIndices ()
	Cast operation for the instance LocTopInd of type LocalTopolgicalIndices.
MeshID_E	GetMeshID ()
	Returns the mesh ID.
MeshType_E	GetMeshType ()
	Returns the mesh type.
unsigned long	GetDimension ()
	Returns the element dimension (1, 2, 3)
pMesh_E	GetpDistribution ()
	Returns the type of polynomial order distribution on the mesh.
ElementShape_E	GetElementShape ()
	Returns the element shape.
unsigned long	GetMaxPolyOrder ()
	Returns the maximmum polynomial order for the elements of the mesh.
unsigned long	GetNumberElements ()
	Returns the number of elements of the mesh.
unsigned long	GetElementOrder (unsigned long ElementNumber)
	Returns the element order for the given element number.
long *	GetElementIncidence (unsigned long ElementNumber, unsigned long &NumberNodes)
	Returns the incidence of the element given in the parameter ElementNumber.
long *	GetElementEquations (unsigned long ElementNumber, unsigned long &NumberEquations)
	Returns the equations (dof numbering) of the element given in the parameter ElementNumber.
double *	GetElementCoordinates (unsigned long ElementNumber, unsigned long &NumberCoords)
	Returns the nodal coordinates of the element given in the parameter ElementNumber.
double *	GetNodeCoordinates (unsigned long LocalElementNumber, unsigned long NodeNumber, unsigned long &NumberDofs)
	Returns the nodal coordinates of the node given in the parameter NodeNumber.
double *	GetElementDeformedCoordinates (unsigned long ElementNumber, unsigned long &NumberCoords)
	Returns the deformed nodal coordinates of the element given in the parameter ElementNumber.
void	GetEdgeCoordinates (unsigned long ElemNumber, unsigned long EdgeNumber, double *EdgeCoords, unsigned long &NumEdgeCoords)
	Gets the edge coordinates for a given element.
void	GetFaceCoordinates (unsigned long ElemNumber, unsigned long FaceNumber, double *FaceCoords, unsigned long &NumFaceCoords)
	Gets the face coordinates for a given element.
unsigned long	GetNumberTopologicalEntities (Entity_E TopoEntity)
	Returns the number of topological entities for the element shape.
unsigned long	GetNumberNodesOnTopologicalEntities (unsigned long ElementNumber, Entity_E TopoEntity)
	Returns the number of nodes/modes on the topological entity for the given element number.
BuiltInArray< unsigned long > &	GetElementOrder ()
	Returns the element orders.
BuiltInArray< long > &	GetPolynomialOrders ()
	Returns the polynomial orders.
OneIndexTable< long > &	GetIncidence ()
	Returns the incidence of all elements of the mesh.
OneIndexTable< double > &	GetCoordinates ()
	Returns the nodal coordinates of all elements of the mesh.
OneIndexTable< double > &	GetDeformCoordinates ()
	Returns the nodal coordinates of all elements of the deformed mesh.
OneIndexTable< long > &	GetEquations ()
	Returns the equations/dof numbering of all elements of the mesh.
BuiltInArray< unsigned long > &	GetNumberElementNodes ()
	Returns the number of element nodes.
unsigned long	GetPosTotalNumberDOFsByGroup ()
	Returns the total number of the DOFs by group of the post processing mesh.
void	SetMeshType (MeshType_E MeshType)
	Sets the mesh type.
void	SetDimension (unsigned long Dimension)
	Sets the element dimension (1, 2, 3)
void	SetpDistribution (pMesh_E pMsh)
	Sets the type of polynomial order distribution on the mesh.
void	SetMaxPolyOrder (unsigned long MaxPolyOrder)
	Sets the maximum polynomial order for the elements of the mesh.
void	SetNumberElements (unsigned long NElems)
	Sets the number of elements.
void	SetNumberElementNodes (BuiltInArray< unsigned long > &NElemNodes, long NElems)
	Sets the number of element nodes and the number of mesh elements. Allocates the element incidences table.
void	SetNumberElementNodes (unsigned long NElemNodes, long NElems)
	Sets the number of element nodes and the number of mesh elements. Allocates the element incidences table.
void	SetElementShape (ElementShape_E Element)
	Sets the element shape.
void	SetPolynomialOrders (BuiltInArray< unsigned long > &ElemOrders)
	Sets the different polynomial orders using the element orders.
void	SetElementOrder (BuiltInArray< unsigned long > &ElementOrder)
	Sets the polynomial order for each element. if pMesh is equal pUNIFORM there is just an order.
void	SetSizeElemCoordsTable ()
	Sets the size of the element coordinates.
void	SetSizeElemIncidTable ()
	Sets the size of the element incidence.
void	SetAllElementsCoords (double *const coords)
	Copy the coordinates of all nodes.
void	SetElementCoords (unsigned long ElemNum, unsigned long nNodes, double *const coords)
	Sets the coordinates for every node.
void	SetElementIncidence (unsigned long ElemNum, unsigned long NodePos, unsigned long NodeNum)
	Sets the element incidence.
void	SetEquations (OneIndexTable< long > ElementIncid, unsigned long NumberDOFs)
	Generates equations to a specific mesh.
void	SetEquations (OneIndexTable< long > ElementIncid, OneIndexTable< unsigned long > NodalDOFNumbers)
	Generates equations to a specific mesh.
void	SetMeshID (MeshID_E MshID)
	Sets the mesh ID.
void	UpdateCoordinates (Vector &Displacement)
	Updates the element nodal coordinates based on an initial set of coordinates and a variation of the coordinates values.
void	UpdateCoordinates (Vector &Displacement, long NumberFreeDOFs)
	Updates the element nodal coordinates based on an initial set of coordinates and a variation of the coordinates values.
void	Save (FILE *File)
	Writes class information to a binary file.
void	Restore (FILE *File)
	Restores class data from a binary file.
void	Read (FILE FEMFile, FILE DEFFile, ElementShape_E ElementShape, unsigned long NumberElements, unsigned long GroupNumber, unsigned long Dimension)
	Reads the some properties of the mesh.
void	ReadIncidence (FILE *FEMFile)
	Reads the incidence of the mesh of the FE from .fem file.
void	Print (FILE *File)
	Prints Mesh information to an ASCII file.
void	Free ()
	Releases the physical memory allocate for the mesh attributes.
Protected Attributes
MeshID_E	MeshID
	Stores the kind of mesh used.
ElementShape_E	ElemShape
	Stores the element shape.
unsigned long	Dim
	Element dimension (1,2,3).
MeshType_E	MshType
	Stores if the mesh is uniform, nonuniform or unstructured.
pMesh_E	pMesh
	Stores if the mesh is p-uniform or p-nonuniform.
unsigned long	MaxOrder
	Stores the maximum polynomial order.
unsigned long	NumElems
	Stores the number of elements.
BuiltInArray< unsigned long >	NumElemNodes
	Stores the number of element nodes.
BuiltInArray< long >	PolyOrder
	The different polynomial order using the element orders.
BuiltInArray< unsigned long >	ElemOrder
	Stores the polynomial order for each element.
OneIndexTable< long >	ElemIncid
	Stores the element incidence.
OneIndexTable< long >	ElemEquations
	Stores the element DOFs numbering.
OneIndexTable< double >	ElemCoords
	Stores the element nodal coordinates for the undeformed mesh.
OneIndexTable< double >	ElemDeformCoords
	Stores the element nodal coordinates for the deformed mesh.
ElementTopologicalIndices	LocTopInd
	Stores the local node numbers for each polynomial order.
unsigned long	PosTotalNumberDOFsByGroup
	Stores the local node numbers for each polynomial order.

Detailed Description

This class store the information for the elements including shape, mesh type, element order distribution, maximum element order, element order/incidence/nodal coordinates/dof numbering for each element and the local topological indices. The main purpose of this class is to collect all mesh data used during the generation of high-order nodes, solution and post-processing.

Author:: Marco Lucio Bittencourt/ Fabiano Fernandes Bargos Gilberto Luis Valente da Costa

Date:: March/28/2011

Constructor & Destructor Documentation

Mesh::Mesh ( MeshID_E MshID )

The constructo to set the mesh ID.

Parameters:

[in] MshID - the mesh ID.

Mesh::Mesh	(	unsigned long	NumberElements,
		ElementShape_E	ElementShape,
		MeshType_E	MeshType,
		pMesh_E	pDistribution,
		unsigned long	MaxPolyOrder = `0`
	)

Constructor with parameters.

Parameters:

[in]	NumberElements	- number of mesh elements.
[in]	ElementShape	- element shape.
[in]	MeshType	- type of the mesh.
[in]	pDistribution	- type of distirbution of the element orders (p-uniform or p-nonuniform).
[in]	MaxPolyOrder	- maximum polynomial order for all elements of the mesh.

Mesh::Mesh ( Mesh & Instance )

Copy-initializer constructor. Copies the contents of Instance for the object.

Parameters:

[in] Instance - instance of Mesh.

Returns:: Reference of the current object.

Member Function Documentation

void Mesh::Free ( )

Releases the physical memory allocate for the mesh attributes.

Note:: Statically allocated variables are set to the default values.

OneIndexTable< double > & Mesh::GetCoordinates ( )

Returns the nodal coordinates of all elements of the mesh.

Returns:: Returns a reference to a table which stores the element nodal coordinates.

OneIndexTable< double > & Mesh::GetDeformCoordinates ( )

Returns the nodal coordinates of all elements of the deformed mesh.

Returns:: Returns a reference to a table which stores the element nodal coordinates.

unsigned long Mesh::GetDimension ( )

Returns the element dimension (1, 2, 3)

Returns:: an unsigned long with the element dimension value.

void Mesh::GetEdgeCoordinates	(	unsigned long	ElemNumber,
		unsigned long	EdgeNumber,
		double *	EdgeCoords,
		unsigned long &	NumEdgeCoords
	)

Gets the edge coordinates for a given element.

Parameters:

[in]	-	ElemNumber - Local element number
[in]	-	EdgeNumber - Local edge number
[out]	-	EdgeCoords - Edge Coordinates
[out]	-	NumEdgeCoords - Number of edge coordinates

double * Mesh::GetElementCoordinates	(	unsigned long	ElementNumber,
		unsigned long &	NumberCoords
	)

Returns the nodal coordinates of the element given in the parameter ElementNumber.

Parameters:

[in]	ElementNumber	- number of the element for which the nodal coordinates are returned.
[out]	NumberCoords	- store the number of nodal coordinates of the element.

Returns:: a pointer to double * const with the element nodal coordinates stored as (X,Y,Z) for each node.

double * Mesh::GetElementDeformedCoordinates	(	unsigned long	ElementNumber,
		unsigned long &	NumberCoords
	)

Returns the deformed nodal coordinates of the element given in the parameter ElementNumber.

Parameters:

[in]	ElementNumber	- number of the element for which the nodal coordinates are returned.
[out]	NumberCoords	- store the number of nodal coordinates of the element.

Returns:: a pointer to double * const with the element nodal coordinates stored as (X,Y,Z) for each node.

long * Mesh::GetElementEquations	(	unsigned long	ElementNumber,
		unsigned long &	NumberEquations
	)

Returns the equations (dof numbering) of the element given in the parameter ElementNumber.

Parameters:

[in]	ElementNumber	- number of the element for which the dof numbering is returned.
[out]	NumberEquations	- store the number of equations/dofs of the element.

Returns:: Array with the element nodal coordinates.

long * Mesh::GetElementIncidence	(	unsigned long	ElementNumber,
		unsigned long &	NumberNodes
	)

Returns the incidence of the element given in the parameter ElementNumber.

Parameters:

[in]	ElementNumber	- number of the element for which the incidence is returned.
[out]	NumberNodes	- store the number of nodes/modes of the element

Returns:: Array with the element incidence.

ElementTopologicalIndices & Mesh::GetElementLocalTopIndices ( )

Cast operation for the instance LocTopInd of type LocalTopolgicalIndices.

Returns:: Reference for insatnec of LocalTopologicalIndices.

unsigned long Mesh::GetElementOrder ( unsigned long ElementNumber )

Returns the element order for the given element number.

Parameters:

[in] ElementNumber - number of the element.

Returns:: Element polynomial order

BuiltInArray< unsigned long > & Mesh::GetElementOrder ( )

Returns the element orders.

Returns:: Returns a reference to a BuiltInArray which stores the element orders.

ElementShape_E Mesh::GetElementShape ( )

Returns the element shape.

Returns:: Element shape as an enumerate.

OneIndexTable< long > & Mesh::GetEquations ( )

Returns the equations/dof numbering of all elements of the mesh.

Returns:: Returns a reference to a table which stores the element dof numberings.

void Mesh::GetFaceCoordinates	(	unsigned long	ElemNumber,
		unsigned long	FaceNumber,
		double *	FaceCoords,
		unsigned long &	NumFaceCoords
	)

Gets the face coordinates for a given element.

Parameters:

[in]	-	ElemNumber - Local Element number.
[in]	-	FaceNumber - Local Face number.
[out]	-	FaceCoords - Edge coordinates.
[out]	-	NumFaceCoords - Number of face coordinates.

OneIndexTable< long > & Mesh::GetIncidence ( )

Returns the incidence of all elements of the mesh.

Returns:: Returns a reference to a table which stores the element incidences.

unsigned long Mesh::GetMaxPolyOrder ( )

Returns the maximmum polynomial order for the elements of the mesh.

Returns:: Returns maximum polynomial order.

MeshID_E Mesh::GetMeshID ( )

Returns the mesh ID.

Returns:: Mesh ID (INPUT, SOLUTION, MAPPING, POST_PROCESSING).

MeshType_E Mesh::GetMeshType ( )

Returns the mesh type.

Returns:: Mesh type (uniform, non-uniform, unstructured).

double * Mesh::GetNodeCoordinates	(	unsigned long	LocalElementNumber,
		unsigned long	NodeNumber,
		unsigned long &	NumberDofs
	)

Returns the nodal coordinates of the node given in the parameter NodeNumber.

Parameters:

[in]	LocalElementNumber	- local number of the element.
[in]	NodeNumber	- number of the node for which the coordinates are returned.
[out]	NumberDofs	- store the number of nodal coordinates of the element.

Returns:: a pointer to double * const with the nodal coordinates stored as (X,Y,Z) for the node.

BuiltInArray< unsigned long > & Mesh::GetNumberElementNodes ( )

Returns the number of element nodes.

Returns:: an unsigned long type that to store the number of element nodes.

unsigned long Mesh::GetNumberElements ( )

Returns the number of elements of the mesh.

Returns:: Returns the number of elements.

unsigned long Mesh::GetNumberNodesOnTopologicalEntities	(	unsigned long	ElementNumber,
		Entity_E	TopoEntity
	)

Returns the number of nodes/modes on the topological entity for the given element number.

Parameters:

[in]	ElementNumber	- element number
[in]	TopoEntity	- type of topological entity (vertex, edge, face, volume).

Returns:: Number of nodes/modes.

unsigned long Mesh::GetNumberTopologicalEntities ( Entity_E TopoEntity )

Returns the number of topological entities for the element shape.

Parameters:

[in] TopoEntity - type of topological entity (vertex, edge, face, volume).

Returns:: Number of topological entities.

pMesh_E Mesh::GetpDistribution ( )

Returns the type of polynomial order distribution on the mesh.

Returns:: Returns p-uniform or p-nonuniform,

BuiltInArray< long > & Mesh::GetPolynomialOrders ( )

Returns the polynomial orders.

Returns:: Returns a reference to a BuiltInArray which stores the polynomial orders.

unsigned long Mesh::GetPosTotalNumberDOFsByGroup ( )

Returns the total number of the DOFs by group of the post processing mesh.

Returns:: an unsigned long type that to store the total number of DOFs.

Mesh::operator ElementTopologicalIndices & ( )

Cast operation for the instance LocTopInd of type LocalTopolgicalIndices.

Returns:: Reference for insatnec of LocalTopologicalIndices.

Mesh & Mesh::operator= ( Mesh & Instance )

Copies the contents of Instance for the object.

Parameters:

[in] Instance - instance of Mesh.

Returns:: Reference of the current object.

void Mesh::Print ( FILE * File )

Prints Mesh information to an ASCII file.

Parameters:

[in] File - pointer to the ASCII file.

void Mesh::Read	(	FILE *	FEMFile,
		FILE *	DEFFile,
		ElementShape_E	ElementShape,
		unsigned long	NumberElements,
		unsigned long	GroupNumber,
		unsigned long	Dimension
	)

Reads the some properties of the mesh.

Parameters:

[in]	FEMFile	- pointer to the .fem file with mesh data.
[in]	DEFFile	- pointer to the .def file with model attributes data.
[in]	ElementShape	- Element Shape of the mesh.
[in]	NumberElements	- Number of elements of the mesh.
[in]	GroupNumber	- group number.
[in]	Dimension	- the dimension of element.

void Mesh::ReadIncidence ( FILE * FEMFile )

Reads the incidence of the mesh of the FE from .fem file.

Parameters:

[in] FEMFile - the ascii file used to read the .fem file.

void Mesh::Restore ( FILE * File )

Restores class data from a binary file.

Parameters:

[in] File - pointer to the binary fil

void Mesh::Save ( FILE * File )

Writes class information to a binary file.

Parameters:

[in] File - Pointer to the file.

void Mesh::SetAllElementsCoords ( double *const coords )

Copy the coordinates of all nodes.

Parameters:

[in] coords - the coordinates of the nodes.

void Mesh::SetDimension ( unsigned long Dimension )

Sets the element dimension (1, 2, 3)

Parameters:

[in] Dimension - Dimension of the mesh.

void Mesh::SetElementOrder ( BuiltInArray< unsigned long > & ElementOrder )

Sets the polynomial order for each element. if pMesh is equal pUNIFORM there is just an order.

Parameters:

[in] ElementOrder - array of the polynomial orders for each element.

void Mesh::SetElementShape ( ElementShape_E Element )

Sets the element shape.

Parameters:

[in] Element - The element shape used to set the attribute ElemShape of the Mesh Class.

void Mesh::SetEquations	(	OneIndexTable< long >	ElementIncid,
		unsigned long	NumberDOFs
	)

Generates equations to a specific mesh.

@ ElementIncid - Element incidences table

@ NumberDOFs - Number of Degrees of freedoms

void Mesh::SetEquations	(	OneIndexTable< long >	ElementIncid,
		OneIndexTable< unsigned long >	NodalDOFNumbers
	)

Generates equations to a specific mesh.

- Element incidences table

- Nodal DOF numbering.

void Mesh::SetMaxPolyOrder ( unsigned long MaxPolyOrder )

Sets the maximum polynomial order for the elements of the mesh.

Parameters:

[in] MaxPolyOrder - Maximum polynomial order.

void Mesh::SetMeshID ( MeshID_E MshID )

Sets the mesh ID.

Parameters:

[in] MshID - the mesh ID.

void Mesh::SetMeshType ( MeshType_E MeshType )

Sets the mesh type.

Parameters:

[in] MeshType - The mesh type used to set the attribute MshType of the Mesh Class

void Mesh::SetNumberElementNodes	(	BuiltInArray< unsigned long > &	NElemNodes,
		long	NElems
	)

Sets the number of element nodes and the number of mesh elements. Allocates the element incidences table.

Parameters:

[in]	NElemNodes	- array of element nodes to all orders.
[in]	NElems	- number of mesh elements.

void Mesh::SetNumberElementNodes	(	unsigned long	NElemNodes,
		long	NElems
	)

Sets the number of element nodes and the number of mesh elements. Allocates the element incidences table.

Parameters:

[in]	NElemNodes	- number of element nodes.
[in]	NElems	- number of mesh elements.

void Mesh::SetNumberElements ( unsigned long NElems )

Sets the number of elements.

Parameters:

[in] NElems - Used to sets the number of elements.

void Mesh::SetpDistribution ( pMesh_E pMsh )

Sets the type of polynomial order distribution on the mesh.

Parameters:

[in] pMsh - pMesh param used to sets p-uniform or p-nonuniform to the polynomial order distribution.

void Mesh::SetPolynomialOrders ( BuiltInArray< unsigned long > & ElemOrders )

Sets the different polynomial orders using the element orders.

Parameters:

[in] ElemOrders - array of the polynomial orders.

void Mesh::UpdateCoordinates ( Vector & Displacement )

Updates the element nodal coordinates based on an initial set of coordinates and a variation of the coordinates values.

Parameters:

[in] Displacement - Vector of displacements values for each nodal dof.

void Mesh::UpdateCoordinates	(	Vector &	Displacement,
		long	NumberFreeDOFs
	)

Updates the element nodal coordinates based on an initial set of coordinates and a variation of the coordinates values.

Parameters:

[in] Displacement - Vector of displacements values for each nodal dof.

The documentation for this class was generated from the following files:

include/fegroups/Mesh.h
src/fegroups/Mesh.cpp

Public Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation
