Various routines with dealing with CSR matrices. More...

#include <GKlib.h>

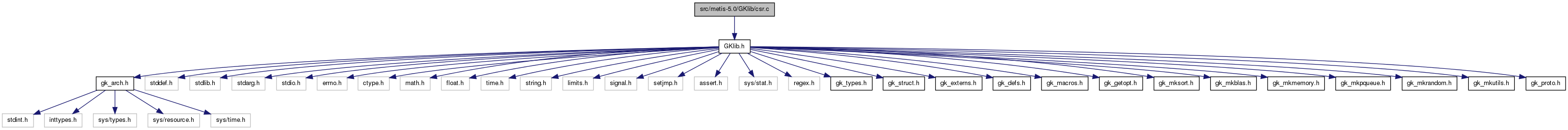

Include dependency graph for csr.c:

Defines
#define	OMPMINOPS 50000
Functions
gk_csr_t *	gk_csr_Create ()
void	gk_csr_Init (gk_csr_t *mat)
void	gk_csr_Free (gk_csr_t **mat)
void	gk_csr_FreeContents (gk_csr_t *mat)
gk_csr_t *	gk_csr_Dup (gk_csr_t *mat)
gk_csr_t *	gk_csr_ExtractSubmatrix (gk_csr_t *mat, int rstart, int nrows)
gk_csr_t *	gk_csr_ExtractRows (gk_csr_t mat, int nrows, int rind)
gk_csr_t *	gk_csr_ExtractPartition (gk_csr_t mat, int part, int pid)
gk_csr_t **	gk_csr_Split (gk_csr_t mat, int color)
gk_csr_t *	gk_csr_Read (char *filename, int format, int readvals, int numbering)
void	gk_csr_Write (gk_csr_t mat, char filename, int format, int writevals, int numbering)
gk_csr_t *	gk_csr_Prune (gk_csr_t *mat, int what, int minf, int maxf)
gk_csr_t *	gk_csr_LowFilter (gk_csr_t *mat, int what, int norm, float fraction)
gk_csr_t *	gk_csr_TopKPlusFilter (gk_csr_t *mat, int what, int topk, float keepval)
gk_csr_t *	gk_csr_ZScoreFilter (gk_csr_t *mat, int what, float zscore)
void	gk_csr_CompactColumns (gk_csr_t *mat)
void	gk_csr_SortIndices (gk_csr_t *mat, int what)
void	gk_csr_CreateIndex (gk_csr_t *mat, int what)
void	gk_csr_Normalize (gk_csr_t *mat, int what, int norm)
void	gk_csr_Scale (gk_csr_t *mat, int type)
void	gk_csr_ComputeSums (gk_csr_t *mat, int what)
void	gk_csr_ComputeSquaredNorms (gk_csr_t *mat, int what)
float	gk_csr_ComputeSimilarity (gk_csr_t *mat, int i1, int i2, int what, int simtype)
int	gk_csr_GetSimilarRows (gk_csr_t mat, int nqterms, int qind, float qval, int simtype, int nsim, float minsim, gk_fkv_t hits, int i_marker, gk_fkv_t i_cand)

Detailed Description

Various routines with dealing with CSR matrices.

Author:: George Karypis

Version:

$Id: csr.c 10537 2011-07-11 05:27:54Z karypis $

Function Documentation

void gk_csr_CompactColumns ( gk_csr_t * mat )

Compacts the column-space of the matrix by removing empty columns. As a result of the compaction, the column numbers are renumbered. The compaction operation is done in place and only affects the row-based representation of the matrix.

Parameters:

mat	the matrix whose empty columns will be removed.

float gk_csr_ComputeSimilarity	(	gk_csr_t *	mat,
		int	i1,
		int	i2,
		int	what,
		int	simtype
	)

Computes the similarity between two rows/columns

Parameters:

mat	the matrix itself. The routine assumes that the indices are sorted in increasing order.
i1	is the first row/column,
i2	is the second row/column,
what	is either GK_CSR_ROW or GK_CSR_COL indicating the type of objects between the similarity will be computed,
simtype	is the type of similarity and is one of GK_CSR_COS, GK_CSR_JAC, GK_CSR_MIN

Returns:: the similarity between the two rows/columns.

void gk_csr_ComputeSquaredNorms	(	gk_csr_t *	mat,
		int	what
	)

Computes the squared of the norms of the rows/columns

Parameters:

mat	the matrix itself,
what	is either GK_CSR_ROW or GK_CSR_COL indicating which squared norms to compute.

void gk_csr_ComputeSums	(	gk_csr_t *	mat,
		int	what
	)

Computes the sums of the rows/columns

Parameters:

mat	the matrix itself,
what	is either GK_CSR_ROW or GK_CSR_COL indicating which sums to compute.

gk_csr_t* gk_csr_Create ( )

Allocate memory for a CSR matrix and initializes it

Returns:: the allocated matrix. The various fields are set to NULL.

void gk_csr_CreateIndex	(	gk_csr_t *	mat,
		int	what
	)

Creates a row/column index from the column/row data.

Parameters:

mat	the matrix itself,
what	is either GK_CSR_ROW or GK_CSR_COL indicating which index will be created.

gk_csr_t* gk_csr_Dup ( gk_csr_t * mat )

Returns a copy of a matrix.

Parameters:

mat	is the matrix to be duplicated.

Returns:: the newly created copy of the matrix.

gk_csr_t* gk_csr_ExtractPartition	(	gk_csr_t *	mat,
		int *	part,
		int	pid
	)

Returns a submatrix corresponding to a specified partitioning of rows.

Parameters:

mat	is the original matrix.
part	is the partitioning vector of the rows.
pid	is the partition ID that will be extracted.

Returns:: the row structure of the newly created submatrix.

gk_csr_t* gk_csr_ExtractRows	(	gk_csr_t *	mat,
		int	nrows,
		int *	rind
	)

Returns a submatrix containing a certain set of rows.

Parameters:

mat	is the original matrix.
nrows	is the number of rows to extract.
rind	is the set of row numbers to extract.

Returns:: the row structure of the newly created submatrix.

gk_csr_t* gk_csr_ExtractSubmatrix	(	gk_csr_t *	mat,
		int	rstart,
		int	nrows
	)

Returns a submatrix containint a set of consecutive rows.

Parameters:

mat	is the original matrix.
rstart	is the starting row.
nrows	is the number of rows from rstart to extract.

Returns:: the row structure of the newly created submatrix.

void gk_csr_Free ( gk_csr_t ** mat )

Frees all the memory allocated for matrix.

Parameters:

mat	is the matrix to be freed.

void gk_csr_FreeContents ( gk_csr_t * mat )

Frees only the memory allocated for the matrix's different fields and sets them to NULL.

Parameters:

mat	is the matrix whose contents will be freed.

int gk_csr_GetSimilarRows	(	gk_csr_t *	mat,
		int	nqterms,
		int *	qind,
		float *	qval,
		int	simtype,
		int	nsim,
		float	minsim,
		gk_fkv_t *	hits,
		int *	i_marker,
		gk_fkv_t *	i_cand
	)

Finds the n most similar rows (neighbors) to the query using cosine similarity.

Parameters:

mat	the matrix itself
nqterms	is the number of columns in the query
qind	is the list of query columns
qval	is the list of correspodning query weights
simtype	is the type of similarity and is one of GK_CSR_COS, GK_CSR_JAC, GK_CSR_MIN
nsim	is the maximum number of requested most similar rows. If -1 is provided, then everything is returned unsorted.
minsim	is the minimum similarity of the requested most similar rows
hits	is the result set. This array should be at least of length nsim.
i_marker	is an array of size equal to the number of rows whose values are initialized to -1. If NULL is provided then this array is allocated and freed internally.
i_cand	is an array of size equal to the number of rows. If NULL is provided then this array is allocated and freed internally.

Returns:: the number of identified most similar rows, which can be smaller than the requested number of nnbrs in those cases in which there are no sufficiently many neighbors.

void gk_csr_Init ( gk_csr_t * mat )

Initializes the matrix

Parameters:

mat	is the matrix to be initialized.

gk_csr_t* gk_csr_LowFilter	(	gk_csr_t *	mat,
		int	what,
		int	norm,
		float	fraction
	)

Eliminates certain entries from the rows/columns of the matrix. The filtering takes place by keeping only the highest weight entries whose sum accounts for a certain fraction of the overall weight of the row/column.

Parameters:

mat	the matrix to be prunned,
what	indicates if the rows (GK_CSR_ROW) or the columns (GK_CSR_COL) of the matrix will be prunned,
norm	indicates the norm that will be used to aggregate the weights and possible values are 1 or 2,
fraction	is the fraction of the overall norm that will be retained by the kept entries.

Returns:: the filtered matrix consisting only of its row-based structure. The input matrix is not modified.

void gk_csr_Normalize	(	gk_csr_t *	mat,
		int	what,
		int	norm
	)

Normalizes the rows/columns of the matrix to be unit length.

Parameters:

mat	the matrix itself,
what	indicates what will be normalized and is obtained by specifying GK_CSR_ROW, GK_CSR_COL, GK_CSR_ROW\|GK_CSR_COL.
norm	indicates what norm is to normalize to, 1: 1-norm, 2: 2-norm

gk_csr_t* gk_csr_Prune	(	gk_csr_t *	mat,
		int	what,
		int	minf,
		int	maxf
	)

Prunes certain rows/columns of the matrix. The prunning takes place by analyzing the row structure of the matrix. The prunning takes place by removing rows/columns but it does not affect the numbering of the remaining rows/columns.

Parameters:

mat	the matrix to be prunned,
what	indicates if the rows (GK_CSR_ROW) or the columns (GK_CSR_COL) of the matrix will be prunned,
minf	is the minimum number of rows (columns) that a column (row) must be present in order to be kept,
maxf	is the maximum number of rows (columns) that a column (row) must be present at in order to be kept.

Returns:: the prunned matrix consisting only of its row-based structure. The input matrix is not modified.

gk_csr_t* gk_csr_Read	(	char *	filename,
		int	format,
		int	readvals,
		int	numbering
	)

Reads a CSR matrix from the supplied file and stores it the matrix's forward structure.

Parameters:

filename	is the file that stores the data.
format	is either GK_CSR_FMT_CLUTO or GK_CSR_FMT_CSR specifying the type of the input format. The difference between the two formats is that GK_CSR_FMT_CLUTO requires the header line, whereas GK_CSR_FMT_CSR does not.
readvals	is either 1 or 0, indicating if the CSR file contains values or it does not. It only applies when GK_CSR_FMT_CSR is used.
numbering	is either 1 or 0, indicating if the numbering of the indices start from 1 or 0, respectively. If they start from 1, they are automatically decreamented during input so that they will start from 0. It only applies when GK_CSR_FMT_CSR is used.

Returns:: the matrix that was read.

void gk_csr_Scale	(	gk_csr_t *	mat,
		int	type
	)

Applies different row scaling methods.

Parameters:

mat	the matrix itself,
type	indicates the type of row scaling. Possible values are: GK_CSR_MAXTF, GK_CSR_SQRT, GK_CSR_LOG, GK_CSR_IDF.

void gk_csr_SortIndices	(	gk_csr_t *	mat,
		int	what
	)

Sorts the indices in increasing order

Parameters:

mat	the matrix itself,
what	is either GK_CSR_ROW or GK_CSR_COL indicating which set of indices to sort.

gk_csr_t** gk_csr_Split	(	gk_csr_t *	mat,
		int *	color
	)

Splits the matrix into multiple sub-matrices based on the provided color array.

Parameters:

mat	is the original matrix.
color	is an array of size equal to the number of non-zeros in the matrix (row-wise structure). The matrix is split into as many parts as the number of colors. For meaningfull results, the colors should be numbered consecutively starting from 0.

Returns:: an array of matrices for each supplied color number.

gk_csr_t* gk_csr_TopKPlusFilter	(	gk_csr_t *	mat,
		int	what,
		int	topk,
		float	keepval
	)

Eliminates certain entries from the rows/columns of the matrix. The filtering takes place by keeping only the highest weight top-K entries along each row/column and those entries whose weight is greater than a specified value.

Parameters:

mat	the matrix to be prunned,
what	indicates if the rows (GK_CSR_ROW) or the columns (GK_CSR_COL) of the matrix will be prunned,
topk	is the number of the highest weight entries to keep.
keepval	is the weight of a term above which will be kept. This is used to select additional terms past the first topk.

Returns:: the filtered matrix consisting only of its row-based structure. The input matrix is not modified.

void gk_csr_Write	(	gk_csr_t *	mat,
		char *	filename,
		int	format,
		int	writevals,
		int	numbering
	)

Writes the row-based structure of a matrix into a file.

Parameters:

mat	is the matrix to be written,
filename	is the name of the output file.
format	is one of GK_CSR_FMT_CLUTO or GK_CSR_FMT_CSR specifying the format of the output file.
writevals	is either 1 or 0 indicating if the values will be written or not. This is only applicable when GK_CSR_FMT_CSR is used.
numbering	is either 1 or 0 indicating if the internal 0-based numbering will be shifted by one or not during output. This is only applicable when GK_CSR_FMT_CSR is used.

gk_csr_t* gk_csr_ZScoreFilter	(	gk_csr_t *	mat,
		int	what,
		float	zscore
	)

Eliminates certain entries from the rows/columns of the matrix. The filtering takes place by keeping only the terms whose contribution to the total length of the document is greater than a user-splied multiple over the average.

This routine assumes that the vectors are normalized to be unit length.

Parameters:

mat	the matrix to be prunned,
what	indicates if the rows (GK_CSR_ROW) or the columns (GK_CSR_COL) of the matrix will be prunned,
zscore	is the multiplicative factor over the average contribution to the length of the document.

Returns:: the filtered matrix consisting only of its row-based structure. The input matrix is not modified.
