This is a class that reads, stores and manages information for the relation between geometric and mesh entities. More...

#include <GeometryMesh.h>

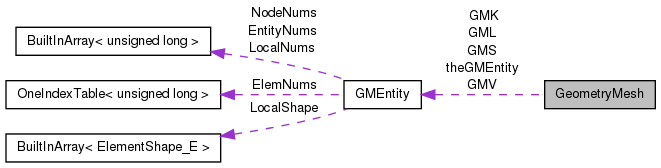

Collaboration diagram for GeometryMesh:

[legend]

List of all members.

Public Member Functions
	GeometryMesh ()
	Default constructor.
	GeometryMesh (GeometryMesh &Instance)
	Copy-initializer constructor. Copies the contents of Instance to the object.
	~GeometryMesh ()
	Destructor.
GeometryMesh &	operator= (GeometryMesh &Instance)
	Copies the contents of Instance to the object.
GMEntity &	GetGMEntity (Entity_E EntityType)
	Returns the geometry entity according to parameter passed.
unsigned long	GetNumberKeypoints ()
	Gets the number of keypoints of the geometry.
unsigned long	GetNumberLines ()
	Returns the number of lines in the geometry.
unsigned long	GetNumberSurfaces ()
	Returns the number of surfaces of the geometry.
unsigned long	GetNumberVolumes ()
	Returns the number of volumes in the geometry.
unsigned long	GetNode (unsigned long KeypointNumber)
	Gets the node number related to a given keypoint.
unsigned long	GetNumberElementEdges (unsigned long LineNumber)
	Returns the number of element wdgwa on a given line.
unsigned long	GetNumberElementFaces (unsigned long SurfaceNumber)
	Returns the number of element faces on a given surface.
unsigned long *const	GetElementEdges (unsigned long LineNumber, unsigned long &NumberEdges)
	Returns the local element edges numbers on the given Line .
unsigned long *const	GetElementNumber (unsigned long LineNumber, GMEntity &GM, unsigned long &NumberElements)
	Returns the elements numbering associate with the edges numbers on the given Line .
unsigned long *const	GetElementFaces (unsigned long SurfaceNumber, unsigned long &NumberFaces)
	Returns the local element face numbers on the given surface..
unsigned long *const	GetElementsLines (unsigned long LineNumber, unsigned long &NumberElements)
	Returns the global element number that have edges on the given Line .
unsigned long *const	GetElementsSurfaces (unsigned long SurfaceNumber, unsigned long &NumberElements)
	Returns the global element numbers that have faces on the given surface..
unsigned long *const	GetElementsVolumes (unsigned long VolumeNumber, unsigned long &NumberElements)
	Returns the global element numbers associated to the given surface .
unsigned long	GetNumberElementsVolumes (unsigned long VolumeNumber)
	Returns the number of elements associated to the given volume.
void	SetNumberKeypoints (unsigned long NumberKeypoints)
	Sets the number of keypoints of the geometry.
void	SetNumberLines (unsigned long NumberLines)
	Sets the number of lines for the geometry.
void	SetNumberSurfaces (unsigned long NumberSurfaces)
	Sets the number of surfaces in the geometry.
void	SetNumberVolumes (unsigned long NumberVolumes)
	Sets the number of volumes in the geometry.
void	SetNodeNumber (unsigned long NodeNumber, unsigned long KeypointNumber)
	Sets the node related to a given keypoint.
void	SetNumberElementEdges (unsigned long LineNumber, unsigned long NumberEdges, unsigned long *ElementEdges)
	Sets the number of element edges on a line.
void	SetNumberElementFaces (unsigned long SurfaceNumber, unsigned long NumberFaces, unsigned long *ElementFaces)
	Sets the number of element faces on the surface.
void	SetElementsLines (unsigned long LineNumber, unsigned long NumberElements, unsigned long Elements, unsigned long Edges)
	Sets the global element numbers and their edge local numbers for each element that has edges on the given Line.
void	SetElementsSurfaces (unsigned long SurfaceNumber, unsigned long NumberElements, unsigned long Elements, unsigned long Faces)
	Sets the global element number and their face local number for each element that has faces on the given surface.
void	SetElementsVolumes (unsigned long VolumeNumber, unsigned long NumberElements, unsigned long *Elements)
	Sets the global element number for each element in the volume.
void	Save (char Tabname, int Version, char Filename)
	Writes class data to a binary database.
void	Save (FILE *File)
	Writes class information to a binary file.
void	Restore (char Tabname, int Version, char Filename)
	Restores class data from a binary database written using the Save method.
void	Restore (FILE *File)
	Restores class data (written using the Save method) from a binary file.
void	Print (FILE File, char Message="")
	Prints the class parameters to an ASCII file.
void	Read (FILE *FEMFile, unsigned long Dimension)
	Reads the .fem ASCII files with the geometry/mesh parameters.
void	Free ()
	Releases the physical memory allocate for the geometry mesh.
Public Attributes
GMEntity *	theGMEntity
Protected Attributes
GMEntity	GMK
	Instance to store geometry mesh key points data.
GMEntity	GML
	Instance to store geometry mesh lines data.
GMEntity	GMS
	Instance to store geometry mesh surfaces data.
GMEntity	GMV
	Instance to store geometry mesh volumes data.

Detailed Description

This is a class that reads, stores and manages information for the relation between geometric and mesh entities.

Note:: For example, for a given surface (geometric entity) is possible to know evey element (mesh) that has faces on the surface. With this information, it is possible to transfer boundary conditions from the surface to nodes.

Author:: Marco Lcio Bittencourt / Fabiano Fernandes Bargos Gilberto Luis Valente da Costa

Date:: April/14/2011

Constructor & Destructor Documentation

GeometryMesh::GeometryMesh ( GeometryMesh & Instance )

Copy-initializer constructor. Copies the contents of Instance to the object.

Parameters:

[in] Instance - instance of GeometryMesh.

Returns:: Reference to the current object.

Member Function Documentation

void GeometryMesh::Free ( )

Releases the physical memory allocate for the geometry mesh.

Note:: Statically allocated variables are set to zero.

unsigned long *const GeometryMesh::GetElementEdges	(	unsigned long	LineNumber,
		unsigned long &	NumberEdges
	)

Returns the local element edges numbers on the given Line .

Parameters:

[in]	LineNumber	- number of the desired Line.
[out]	NumberEdges	- number of the local edges

Returns:: Pointer to array with element edge local numbers.

unsigned long *const GeometryMesh::GetElementFaces	(	unsigned long	SurfaceNumber,
		unsigned long &	NumberFaces
	)

Returns the local element face numbers on the given surface..

Parameters:

[in]	SurfaceNumber	- number of the desired surface.
[out]	NumberFaces	- Number of local faces.

Returns:: Pointer to the array with element face numbers.

unsigned long *const GeometryMesh::GetElementNumber	(	unsigned long	LineNumber,
		GMEntity &	GM,
		unsigned long &	NumberElements
	)

Returns the elements numbering associate with the edges numbers on the given Line .

Parameters:

[in]	LineNumber	- number of the desired Line.
[out]	NumberElements	- number of the elements associate with each local edge.

Returns:: Pointer to array with numbering of the element associate with each local edge.

unsigned long *const GeometryMesh::GetElementsLines	(	unsigned long	LineNumber,
		unsigned long &	NumberElements
	)

Returns the global element number that have edges on the given Line .

Parameters:

[in]	LineNumber	- number of the desired Line.
[out]	NumberElements	- The number of global elements.

Returns:: Pointer to array with element numbers.

unsigned long *const GeometryMesh::GetElementsSurfaces	(	unsigned long	SurfaceNumber,
		unsigned long &	NumberElements
	)

Returns the global element numbers that have faces on the given surface..

Parameters:

[in]	SurfaceNumber	- number of the desired surface.
[out]	NumberElements	- The number of global elements.

Returns:: Pointer to the array with element numbers.

unsigned long *const GeometryMesh::GetElementsVolumes	(	unsigned long	VolumeNumber,
		unsigned long &	NumberElements
	)

Returns the global element numbers associated to the given surface .

Parameters:

[in]	VolumeNumber	- number of the desired volume.
[out]	NumberElements	- The number of global elements.

Returns:: Pointer to the array with the element numbers.

GMEntity & GeometryMesh::GetGMEntity ( Entity_E EntityType )

Returns the geometry entity according to parameter passed.

Parameters:

[in] EntityType - Type of geometry entity, for example: LINES.

Returns:: a GMEntity type with the values the a certain geometry entity.

unsigned long GeometryMesh::GetNode ( unsigned long KeypointNumber )

Gets the node number related to a given keypoint.

Parameters:

[in] KeypointNumber - Key point number is index to access the node number.

Returns:: Returns the node number attached to the keypoint

unsigned long GeometryMesh::GetNumberElementEdges ( unsigned long LineNumber )

Returns the number of element wdgwa on a given line.

Parameters:

[in] LineNumber - number of the desired Line.

Returns:: Number of edges on a line.

unsigned long GeometryMesh::GetNumberElementFaces ( unsigned long SurfaceNumber )

Returns the number of element faces on a given surface.

Parameters:

[in] Surface - number of the desired surface.

Returns:: Number of element faces.

unsigned long GeometryMesh::GetNumberElementsVolumes ( unsigned long VolumeNumber )

Returns the number of elements associated to the given volume.

Parameters:

[in] VolumeNumber - number of the volume.

Returns:: Number of elements,

unsigned long GeometryMesh::GetNumberKeypoints ( )

Gets the number of keypoints of the geometry.

Returns:: an unsigned long with the number of keypoints.

unsigned long GeometryMesh::GetNumberLines ( )

Returns the number of lines in the geometry.

Returns:: an unsigned long with Number of lines.

unsigned long GeometryMesh::GetNumberSurfaces ( )

Returns the number of surfaces of the geometry.

Returns:: an unsigned long with the number of surfaces.

unsigned long GeometryMesh::GetNumberVolumes ( )

Returns the number of volumes in the geometry.

Returns:: an unsigned long with Number of volumes.

GeometryMesh & GeometryMesh::operator= ( GeometryMesh & Instance )

Copies the contents of Instance to the object.

Parameters:

[in] Instance - instance of GeometryMesh.

Returns:: Reference to the current object.

void GeometryMesh::Print	(	FILE *	File,
		char *	Message = `""`
	)

Prints the class parameters to an ASCII file.

Parameters:

[in]	File	- pointer to the ASCII file.
[in]	Message	- optional message to be written to the ASCII file.

void GeometryMesh::Read	(	FILE *	FEMFile,
		unsigned long	Dimension
	)

Reads the .fem ASCII files with the geometry/mesh parameters.

Parameters:

[in]	FEMFile	- pointer to the .fem file with mesh data.
[in]	Dimension	- dimension of the problem.

void GeometryMesh::Restore	(	char *	Tabname,
		int	Version,
		char *	Filename
	)

Restores class data from a binary database written using the Save method.

Parameters:

[in]	Tabname	- name of the database table where the data will be stored.
[in]	Version	- data version number.
[in]	Filename	- database prefix filename. Two files will be used:

void GeometryMesh::Restore ( FILE * File )

Restores class data (written using the Save method) from a binary file.

Parameters:

[in] File - pointer to the binary file.

void GeometryMesh::Save	(	char *	Tabname,
		int	Version,
		char *	Filename
	)

Writes class data to a binary database.

Parameters:

[in]	Tabname	- name of the database table where the data will be stored.
[in]	Version	- data version number.
[in]	Filename	- database prefix filename. Two files will be used: filename.dir and filename.bdg. The first one stores keys to the data stored in the filename.bdg file.

void GeometryMesh::Save ( FILE * File )

Writes class information to a binary file.

Note:: The current object state can be completely recovered when applying the Restore() operation.

Parameters:

[in] File - pointer to the binary file.

void GeometryMesh::SetElementsLines	(	unsigned long	LineNumber,
		unsigned long	NumberElements,
		unsigned long *	Elements,
		unsigned long *	Edges
	)

Sets the global element numbers and their edge local numbers for each element that has edges on the given Line.

Parameters:

[in]	LineNumber	- number of the desired Line.
[in]	NumberElements	- number ofl elements,
[in]	Elements	- array with element numbers.
[in]	Edges	- local edge numbers.

void GeometryMesh::SetElementsSurfaces	(	unsigned long	SurfaceNumber,
		unsigned long	NumberElements,
		unsigned long *	Elements,
		unsigned long *	Faces
	)

Sets the global element number and their face local number for each element that has faces on the given surface.

Parameters:

[in]	SurfaceNumber	- number of the desired surface..
[in]	NumberElements	- number ofl elements.
[in]	Elements	- global element numbers.
[in]	FaceNumbers	- local face numbers.

void GeometryMesh::SetElementsVolumes	(	unsigned long	VolumeNumber,
		unsigned long	NumberElements,
		unsigned long *	Elements
	)

Sets the global element number for each element in the volume.

Parameters:

[in]	VolumeNumber	- number of the volume.
[in]	NumberElements	- number of elements.
[in]	Elements	- array with the global element numbers.

void GeometryMesh::SetNodeNumber	(	unsigned long	NodeNumber,
		unsigned long	KeypointNumber
	)

Sets the node related to a given keypoint.

Parameters:

[in]	NodeNumber	- Index to access array of number of the node coincident with the keypoint.
[in]	KeypointNumber	- Key point number.

void GeometryMesh::SetNumberElementEdges	(	unsigned long	LineNumber,
		unsigned long	NumberEdges,
		unsigned long *	ElementEdges
	)

Sets the number of element edges on a line.

Parameters:

[in]	LineNumber	- number of the line.
[in]	NumberEdges	- number of edges on the line.
[in]	ElementEdges	- The local element edges to be attribuited.

void GeometryMesh::SetNumberElementFaces	(	unsigned long	SurfaceNumber,
		unsigned long	NumberFaces,
		unsigned long *	ElementFaces
	)

Sets the number of element faces on the surface.

Parameters:

[in]	SurfaceNumber	- number of the surface.
[in]	NumberFaces	- number of element faces on the given surface.
[in]	ElementFaces	- The local element faces to be attribuited.

void GeometryMesh::SetNumberKeypoints ( unsigned long NumberKeypoints )

Sets the number of keypoints of the geometry.

Parameters:

[in] NumberKeyPoints - Number of Key points

void GeometryMesh::SetNumberLines ( unsigned long NumberLines )

Sets the number of lines for the geometry.

Parameters:

[in] NumberLines - number of lines of the geomtry.

void GeometryMesh::SetNumberSurfaces ( unsigned long NumberSurfaces )

Sets the number of surfaces in the geometry.

Parameters:

[in] NumberSurfaces - number of surfaces of the geomtry.

void GeometryMesh::SetNumberVolumes ( unsigned long NumberVolumes )

Sets the number of volumes in the geometry.

Parameters:

[in] NumberVolumes - number of volumes of the geomtry.

The documentation for this class was generated from the following files:

include/geometrymesh/GeometryMesh.h
src/geometrymesh/GeometryMesh.cpp

Public Member Functions

Public Attributes

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation
