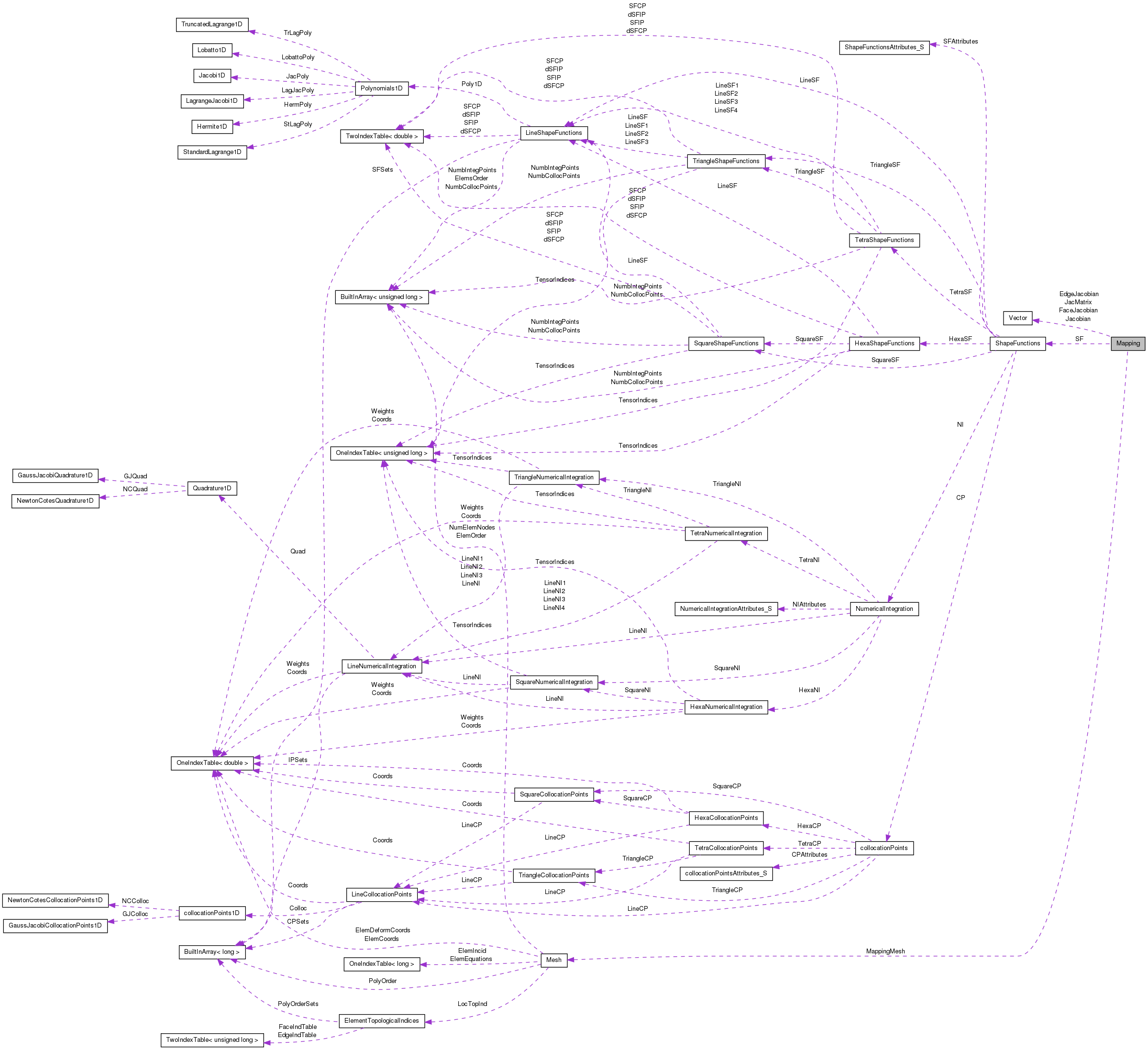

Collaboration diagram for Mapping:

Public Member Functions
	Mapping ()
	Default constructor.
	Mapping (ShapeFunctions &InterpolationFunctions)
	Constructor with parameters to set the attributes of the Mapping class.
	Mapping (ShapeFunctions &InterpolationFunctions, unsigned long Dimension, unsigned long MaxNumberIntegPoints, Mesh &MapMesh)
	Constructor with parameters to set the attributes of the Mapping class.
	Mapping (Mapping &Instance)
	Copy-initializer constructor. Copied the data of Instance to the current object.
	~Mapping ()
	Destructor.
Mapping &	operator= (Mapping &Instance)
	Copied the data of Instance to the current object.
	operator ShapeFunctions & ()
	Returns an instance of the Shape Functions class.
	operator ShapeFunctions * ()
	Returns an instance of the Shape Functions class.
ShapeFunctions *	GetShapeFunctions ()
	Returns an instance of the Shape Functions class.
unsigned long	GetNumberIntegPoints ()
	Returns the number of integration points.
double *const	GetJacMatrix ()
	Returns the Auxiliar vector that stores the jacobian matrices for each integration point of an element.
double *const	GetJacobian ()
	Returns the auxiliar vector that stores the Jacobian for each integration point of an element.
void	SetShapeFunctions (ShapeFunctions *ShFunc)
	Sets an instance of the Shape Functions class.
void	SetMappingMeshPointer (Mesh &MapMesh)
	Sets the pointer attribute of the mapping mesh.
void	SetMaxNumberIntegPoints (unsigned long MaxNumberIntegPoints, unsigned long Dimension)
	Sets the maximum number of integration points used to allocate the auxiliary vectors.
void	GetJacobianClassic (unsigned long ElementNumber, unsigned long Dim, unsigned long IntegOrder, unsigned long ElemOrder, ElementShape_E ElemShape, ElementShape_E EntityShape, unsigned long NumberCoords, double Coords, unsigned long &NumberIntegrationPoints, double &ElementMeasure, double JacobianMatrices, double *DetJacobianMatrices)
	Returns the element Jacobian matrices and their determinants for all integration points. It returns also the numbers of shape functions and integration points and also element measure.
double *const	GetJacobianClassic (unsigned long ElementNumber, unsigned long &NumberSF, unsigned long &NumberIntegrationPoints, double ElementMeasure, double const JacobianMatricesUM, double const DetJacobianMatricesUM, double const JacobianMatricesDM, double const DetJacobianMatricesDM)
	Returns the element Jacobian matrices and their determinants for all integration points. It returns also the numbers of shape functions and integration points and also element measure.
void	GetFaceJacobian (unsigned long ElementNumber, unsigned long Dim, unsigned long IntegOrder, unsigned long ElemOrder, ElementShape_E ElemShape, ElementShape_E EntityShape, unsigned long NumberCoords, double Coords, unsigned long &NumberIntegrationPoints, double *Js)
	Returns the element surface Jacobian determinants for all integration points. It returns also the numbers of shape functions and integration points and also element measure.
void	GetEdgeJacobian (unsigned long ElementNumber, unsigned long Dim, unsigned long IntegOrder, unsigned long ElemOrder, ElementShape_E ElemShape, ElementShape_E EntityShape, unsigned long NumberCoords, double Coords, unsigned long &NumberIntegrationPoints, double *Jc)
	Returns the element surface Jacobian determinants for all integration points. It returns also the numbers of shape functions and integration points and also element measure.
void	GetFaceJacobian1DMatrices (unsigned long ElementNumber, unsigned long Dim, unsigned long IntegOrder, unsigned long ElemOrder, ElementShape_E ElemShape, ElementShape_E EntityShape, unsigned long NumberCoords, double Coords, unsigned long &NumberIntegrationPoints, double *Js)
	Returns the element surface Jacobian determinants for all integration points. It returns also the numbers of shape functions and integration points and also element measure.
void	GetEdgeJacobian1DMatrices (unsigned long ElementNumber, unsigned long Dim, unsigned long IntegOrder, unsigned long ElemOrder, ElementShape_E ElemShape, ElementShape_E EntityShape, unsigned long NumberCoords, double Coords, unsigned long &NumberIntegrationPoints, double *Jc)
	Returns the element surface Jacobian determinants for all integration points. It returns also the numbers of shape functions and integration points and also element measure.
void	GetJacobian1DMatrices (unsigned long ElementNumber, unsigned long Dim, unsigned long IntegOrder, unsigned long ElemOrder, ElementShape_E ElemShape, ElementShape_E EntityShape, unsigned long NumberCoords, double Coords, unsigned long &NumberIntegrationPoints, double &ElementMeasure, double JacobianMatrices, double *DetJacobianMatrices)
	Returns the element Jacobian matrices and their determinants for all integration points. It returns also the numbers of shape functions and integration points and also element measure.
void	GetJacobian1DMatrices (unsigned long ElementNumber, unsigned long Dim, unsigned long IntegPoint, unsigned long IntegOrder, unsigned long ElemOrder, ElementShape_E ElemShape, ElementShape_E EntityShape, unsigned long NumberCoords, double Coords, unsigned long &NumberIntegrationPoints, double &ElementMeasure, double JacobianMatrices, double *DetJacobianMatrices)
	Returns the element Jacobian matrices and their determinants for all integration points. It returns also the numbers of shape functions and integration points and also element measure.
double *const	GetJacobian1DMatrices (unsigned long ElementNumber, unsigned long &NumberSF, unsigned long &NumberIntegrationPoints, double ElementMeasure, double const JacobianMatricesUM, double const DetJacobianMatricesUM, double const JacobianMatricesDM, double const DetJacobianMatricesDM)
	Returns the element Jacobian matrices and their determinants for all integration points. It returns also the numbers of shape functions and integration points and also element measure.
void	Print (FILE *File, unsigned long Dimension)
	Prints Mapping information to an ASCII file.
Protected Attributes
Vector	JacMatrix
	Auxiliar vector that stores the jacobian matrices for each integration point of an element.
Vector	Jacobian
	Auxiliar vector that stores the Jacobian for each integration point of an element.
Vector	EdgeJacobian
	Class variable that stores the edge jacobian.
Vector	FaceJacobian
	Class variable that stores the face jacobian.
ShapeFunctions *	SF
	Pointer to the shape functions.
unsigned long	NumberIntegPoints
	Stores the number of integration points for each jacobian matrix.
Mesh *	MappingMesh
	The pointer to the mapping meh.

Constructor & Destructor Documentation

Mapping::Mapping ( ShapeFunctions & InterpolationFunctions )

Constructor with parameters to set the attributes of the Mapping class.

Parameters:

[in] InterpolationFunctions - The shape functions

Mapping::Mapping	(	ShapeFunctions &	InterpolationFunctions,
		unsigned long	Dimension,
		unsigned long	MaxNumberIntegPoints,
		Mesh &	MapMesh
	)

Constructor with parameters to set the attributes of the Mapping class.

Parameters:

[in]	InterpolationFunctions	- The shape functions.
[in]	Dimension	- dimension of the element.
[in]	MaxNumberIntegPoints	- maximum number of integration points for all elements.

Mapping::Mapping ( Mapping & Instance )

Copy-initializer constructor. Copied the data of Instance to the current object.

Parameters:

Instance - instance of Mapping whose data will be copied to the current object.

Returns:: Reference to the current object.

Member Function Documentation

void Mapping::GetEdgeJacobian	(	unsigned long	ElementNumber,
		unsigned long	Dim,
		unsigned long	IntegOrder,
		unsigned long	ElemOrder,
		ElementShape_E	ElemShape,
		ElementShape_E	EntityShape,
		unsigned long	NumberCoords,
		double *	Coords,
		unsigned long &	NumberIntegrationPoints,
		double **	Jc
	)

Returns the element surface Jacobian determinants for all integration points. It returns also the numbers of shape functions and integration points and also element measure.

Parameters:

[in]	ElementNumber	- local number of the element in the group.
[in]	Dim	- element dimension (1,2,3).
[in]	IntegOrder	- IntegrandOrder.
[in]	ElemOrder	- Element order.
[in]	ElemShape	- Element Shape.
[in]	EntityShape	- Entity Shape.
[in]	NumberCoords	- Number of element coordinates.
[in]	Coords	- the coordinates from the an element.
[out]	NumberIntegrationPoints	- number of integration points.
[out]	Jc	- Edge Jacobian on integration points.

void Mapping::GetEdgeJacobian1DMatrices	(	unsigned long	ElementNumber,
		unsigned long	Dim,
		unsigned long	IntegOrder,
		unsigned long	ElemOrder,
		ElementShape_E	ElemShape,
		ElementShape_E	EntityShape,
		unsigned long	NumberCoords,
		double *	Coords,
		unsigned long &	NumberIntegrationPoints,
		double **	Jc
	)

Returns the element surface Jacobian determinants for all integration points. It returns also the numbers of shape functions and integration points and also element measure.

Parameters:

[in]	ElementNumber	- local number of the element in the group.
[in]	Dim	- element dimension (1,2,3).
[in]	IntegOrder	- IntegrandOrder.
[in]	ElemOrder	- Element order.
[in]	ElemShape	- Element Shape.
[in]	EntityShape	- Entity Shape.
[in]	NumberCoords	- Number of element coordinates.
[in]	Coords	- the coordinates from the an element.
[out]	NumberIntegrationPoints	- number of integration points.
[out]	Jc	- Edge Jacobian on integration points.

void Mapping::GetFaceJacobian	(	unsigned long	ElementNumber,
		unsigned long	Dim,
		unsigned long	IntegOrder,
		unsigned long	ElemOrder,
		ElementShape_E	ElemShape,
		ElementShape_E	EntityShape,
		unsigned long	NumberCoords,
		double *	Coords,
		unsigned long &	NumberIntegrationPoints,
		double **	Js
	)

Returns the element surface Jacobian determinants for all integration points. It returns also the numbers of shape functions and integration points and also element measure.

Parameters:

[in]	ElementNumber	- local number of the element in the group.
[in]	Dim	- element dimension (1,2,3).
[in]	IntegOrder	- IntegrandOrder.
[in]	ElemOrder	- Element order.
[in]	ElemShape	- Element Shape.
[in]	EntityShape	- Entity Shape.
[in]	NumberCoords	- Number of element coordinates.
[in]	Coords	- the coordinates from the an element.
[out]	NumberIntegrationPoints	- number of integration points.
[out]	Js	- Surface Jacobian on integration points.

void Mapping::GetFaceJacobian1DMatrices	(	unsigned long	ElementNumber,
		unsigned long	Dim,
		unsigned long	IntegOrder,
		unsigned long	ElemOrder,
		ElementShape_E	ElemShape,
		ElementShape_E	EntityShape,
		unsigned long	NumberCoords,
		double *	Coords,
		unsigned long &	NumberIntegrationPoints,
		double **	Js
	)

Returns the element surface Jacobian determinants for all integration points. It returns also the numbers of shape functions and integration points and also element measure.

Parameters:

[in]	ElementNumber	- local number of the element in the group.
[in]	Dim	- element dimension (1,2,3).
[in]	IntegOrder	- IntegrandOrder.
[in]	ElemOrder	- Element order.
[in]	ElemShape	- Element Shape.
[in]	EntityShape	- Entity Shape.
[in]	NumberCoords	- Number of element coordinates.
[in]	Coords	- the coordinates from the an element.
[out]	NumberIntegrationPoints	- number of integration points.
[out]	Js	- Face Jacobian on integration points.

void Mapping::GetJacobian1DMatrices	(	unsigned long	ElementNumber,
		unsigned long	Dim,
		unsigned long	IntegOrder,
		unsigned long	ElemOrder,
		ElementShape_E	ElemShape,
		ElementShape_E	EntityShape,
		unsigned long	NumberCoords,
		double *	Coords,
		unsigned long &	NumberIntegrationPoints,
		double &	ElementMeasure,
		double **	JacobianMatrices,
		double **	DetJacobianMatrices
	)

Returns the element Jacobian matrices and their determinants for all integration points. It returns also the numbers of shape functions and integration points and also element measure.

Parameters:

[in]	ElementNumber	- local number of the element in the group.
[in]	Dim	- element dimension (1,2,3).
[in]	IntegOrder	- IntegrandOrder.
[in]	ElemOrder	- Element order.
[in]	ElemShape	- Element shape.
[in]	EntityShape	- Entity Shape.
[in]	NumberCoords	- Number of element coordinates.
[in]	Coords	- the coordinates from the an element.
[out]	NumberIntegrationPoints	- number of integration points.
[out]	ElementMeasure	- Lenght, area or volume of the element.
[out]	JacobianMatrices	- Jacobian matrices on integration points.
[out]	DetJacobianMatrices	- Determinant of Jacobian matrices on integration points.

void Mapping::GetJacobian1DMatrices	(	unsigned long	ElementNumber,
		unsigned long	Dim,
		unsigned long	IntegPoint,
		unsigned long	IntegOrder,
		unsigned long	ElemOrder,
		ElementShape_E	ElemShape,
		ElementShape_E	EntityShape,
		unsigned long	NumberCoords,
		double *	Coords,
		unsigned long &	NumberIntegrationPoints,
		double &	ElementMeasure,
		double **	JacobianMatrices,
		double **	DetJacobianMatrices
	)

Returns the element Jacobian matrices and their determinants for all integration points. It returns also the numbers of shape functions and integration points and also element measure.

Parameters:

[in]	ElementNumber	- local number of the element in the group.
[in]	Dim	- element dimension (1,2,3).
[in]	IntegPoint	- Integration point.
[in]	IntegOrder	- IntegrandOrder.
[in]	ElemOrder	- Element order.
[in]	ElemShape	- Element shape.
[in]	EntityShape	- Entity Shape.
[in]	NumberCoords	- Number of element coordinates.
[in]	Coords	- the coordinates from the an element.
[out]	NumberIntegrationPoints	- number of integration points.
[out]	ElementMeasure	- Lenght, area or volume of the element.
[out]	JacobianMatrices	- Jacobian matrices on integration points.
[out]	DetJacobianMatrices	- Determinant of Jacobian matrices on integration points.

double *const Mapping::GetJacobian1DMatrices	(	unsigned long	ElementNumber,
		unsigned long &	NumberSF,
		unsigned long &	NumberIntegrationPoints,
		double	ElementMeasure,
		double const *	JacobianMatricesUM,
		double const *	DetJacobianMatricesUM,
		double const *	JacobianMatricesDM,
		double const *	DetJacobianMatricesDM
	)

Returns the element Jacobian matrices and their determinants for all integration points. It returns also the numbers of shape functions and integration points and also element measure.

Parameters:

[in]	ElementNumber	- local number of the element in the group.
[out]	NumberSF	- Number of element shape functions.
[out]	NumberIntegrationPoints	- number of integration points.
[out]	ElementMeasure	- Lenght, area or volume of the element.
[out]	JacobianMatricesUM	- Jacobian matrices on integration points calculated using the nodal coordinates of the initial undeformed configuration.
[out]	DetJacobianMatricesUM	- Determinant of Jacobian matrices on integration points calculated using the nodal coordinates of the initial undeformed configuration.
[out]	JacobianMatricesDM	- Jacobian matrices on integration points calculated using the nodal coordinates of the current deformed configuration.
[out]	DetJacobianMatricesDM	- Determinant of Jacobian matrices on integration points calculated using the nodal coordinates of the current deformed configuration.

void Mapping::GetJacobianClassic	(	unsigned long	ElementNumber,
		unsigned long	Dim,
		unsigned long	IntegOrder,
		unsigned long	ElemOrder,
		ElementShape_E	ElemShape,
		ElementShape_E	EntityShape,
		unsigned long	NumberCoords,
		double *	Coords,
		unsigned long &	NumberIntegrationPoints,
		double &	ElementMeasure,
		double **	JacobianMatrices,
		double **	DetJacobianMatrices
	)

Returns the element Jacobian matrices and their determinants for all integration points. It returns also the numbers of shape functions and integration points and also element measure.

Parameters:

[in]	ElementNumber	- local number of the element in the group.
[in]	Dim	- element dimension (1,2,3).
[in]	IntegOrder	- IntegrandOrder.
[in]	ElemOrder	- Element order.
[in]	ElemShape	- Element shape.
[in]	EntityShape	- Entity Shape.
[in]	NumberCoords	- Number of element coordinates.
[in]	Coords	- the coordinates from the an element.
[out]	NumberIntegrationPoints	- number of integration points.
[out]	ElementMeasure	- Lenght, area or volume of the element.
[out]	JacobianMatrices	- Jacobian matrices on integration points.
[out]	DetJacobianMatrices	- Determinant of Jacobian matrices on integration points.

double *const Mapping::GetJacobianClassic	(	unsigned long	ElementNumber,
		unsigned long &	NumberSF,
		unsigned long &	NumberIntegrationPoints,
		double	ElementMeasure,
		double const *	JacobianMatricesUM,
		double const *	DetJacobianMatricesUM,
		double const *	JacobianMatricesDM,
		double const *	DetJacobianMatricesDM
	)

Returns the element Jacobian matrices and their determinants for all integration points. It returns also the numbers of shape functions and integration points and also element measure.

Parameters:

[in]	ElementNumber	- local number of the element in the group.
[out]	NumberSF	- Number of element shape functions.
[out]	NumberIntegrationPoints	- number of integration points.
[out]	ElementMeasure	- Lenght, area or volume of the element.
[out]	JacobianMatricesUM	- Jacobian matrices on integration points calculated using the nodal coordinates of the initial undeformed configuration.
[out]	DetJacobianMatricesUM	- Determinant of Jacobian matrices on integration points calculated using the nodal coordinates of the initial undeformed configuration.
[out]	JacobianMatricesDM	- Jacobian matrices on integration points calculated using the nodal coordinates of the current deformed configuration.
[out]	DetJacobianMatricesDM	- Determinant of Jacobian matrices on integration points calculated using the nodal coordinates of the current deformed configuration.

Mapping::operator ShapeFunctions & ( )

Returns an instance of the Shape Functions class.

Returns:: Returns a reference to the Shape Functions class.

Mapping::operator ShapeFunctions * ( )

Returns an instance of the Shape Functions class.

Returns:: Returns a pointer to the Shape Functions class.

Mapping & Mapping::operator= ( Mapping & Instance )

Copied the data of Instance to the current object.

Parameters:

Instance - instance of Mapping whose data will be copied to the current object.

Returns:: Reference to the current object.

void Mapping::Print	(	FILE *	File,
		unsigned long	Dimension
	)

Prints Mapping information to an ASCII file.

Parameters:

[in]	File	- pointer to the ASCII file.
[in]	Dimension	- dimension of the element.

void Mapping::SetMaxNumberIntegPoints	(	unsigned long	MaxNumberIntegPoints,
		unsigned long	Dimension
	)

Sets the maximum number of integration points used to allocate the auxiliary vectors.

Parameters:

[in]	MaxNumberIntegPoints	- maximum number of integration points for all elements.
[in]	Dimension	- dimension of the element

The documentation for this class was generated from the following files:

include/fegroups/Mapping.h
src/fegroups/Mapping.cpp

Public Member Functions

Protected Attributes

Constructor & Destructor Documentation

Member Function Documentation
