This class is a container class that returns the collocation point coordinates according to the element shape and topological entity. More...

#include <collocationPoints.h>

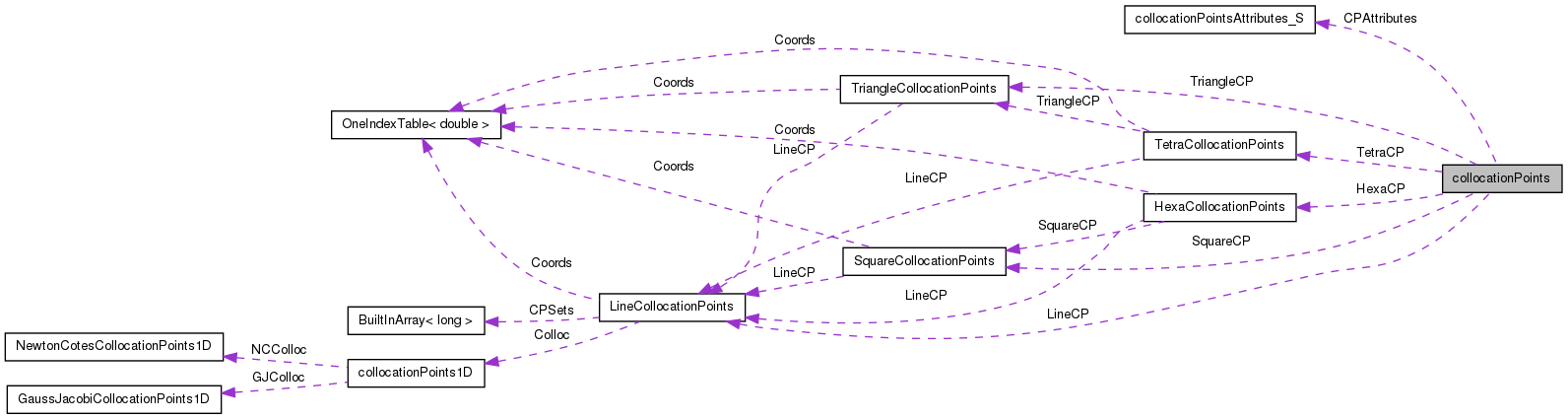

Collaboration diagram for collocationPoints:

[legend]

List of all members.

Public Member Functions
	collocationPoints ()
	Default constructor.
	collocationPoints (ElementShape_E ElementShape, QuadCollocType_E CollocationType, unsigned long Alpha, unsigned long Beta, unsigned long MaxOrder)
	Constructor with all class attributes input as individual parameters.
	collocationPoints (collocationPointsAttributes_S &CPAttrib)
	Constructor with collocationPointsAttributes_S struct as parameter.
	collocationPoints (collocationPoints &Instance)
	Copy-initializer constructor.
collocationPointsAttributes_S &	GetCollocationPointsAttributes ()
	returns the collocation points attributes.
double *const	GetCollocationPointsCoords (ElementShape_E ElementShape, ElementShape_E EntityShape, unsigned long PolyOrder, unsigned long &NumberPoints)
	Gets the collocation points for a given element shape and polynomial order.
long	GetCollocationPointsSetNumber (ElementShape_E ElemShape, ElementShape_E EntityShape, unsigned long PolyOrder)
	Returns the set number of the collocation points for the given polynomial order.
unsigned long	GetMaxPolyOrder (ElementShape_E ElemShape)
	Returns the maximum polynomial order according to element shape informed.
unsigned long	GetNumberCollocationPoints (ElementShape_E ElementShape, ElementShape_E EntityShape, unsigned long PolyOrder, long &CollocationPointsSetNumber)
	Returns the number of collocation points for the given polynomial order and the collocation point set where they are stored.
unsigned long	GetNumberCollocationPointsSets (ElementShape_E ElementShape)
	Returns the number of collocation points sets stored in the class.
unsigned long	GetTotalNumberCollocationPoints (ElementShape_E ElemShape)
	Returns the total number of collocation points according to element shape informed.
	operator HexaCollocationPoints & ()
	Cast operator for the reference of the class attribute "HexaCP".
	operator LineCollocationPoints & ()
	Cast operator for the reference of the class attribute "LineCP".
	operator QuadCollocType_E ()
	Cast operator for the QuadCollocType field of CPAttributes struct.
	operator SquareCollocationPoints & ()
	Cast operator for the reference of the class attribute "SquareCP".
	operator TetraCollocationPoints & ()
	Cast operator for the reference of the class attribute "TetraCP".
	operator TriangleCollocationPoints & ()
	Cast operator for the reference of the class attribute "TriangleCP".
collocationPoints &	operator= (collocationPoints &Instance)
	Copies the contents of instance to the object.
void	Print (FILE *File, ElementShape_E ElementShape, ElementShape_E EntityShape)
	: Prints the collocation points attributes and values to the given ascii file.
void	Read (FILE *DefFile, unsigned long GroupNumber, ElementShape_E ElementShape, unsigned long MaxOrder)
	Reads the collocation points attributes from the .def ascii file.
void	RunCollocationPointsCoords (ElementShape_E ElementShape, ElementShape_E EntityShape, BuiltInArray< unsigned long > &PolyOrder, OneIndexTable< unsigned long > &Indices)
	Generates all the collocation points according to the polynomial orders given in PolyOrder.
void	SetCollocationPointsAttributes (ElementShape_E ElementShape, QuadCollocType_E CollocationType, unsigned long Alpha, unsigned long Beta, unsigned long MaxOrder)
	Sets the attributes for the collocation points in out as individual parameters.
void	SetCollocationPointsAttributes (collocationPointsAttributes_S &CPAttrib)
	Sets the attributes for the collocation points input as a instance of the CollocationPointsAttributes_S.
void	SetMaxPolyOrder (ElementShape_E ElemShape, unsigned long MaxOrder)
	Sets the maximum polynomial according to element shape.
	~collocationPoints ()
	Class destructor.
Protected Attributes
collocationPointsAttributes_S	CPAttributes
	This variable stores a struct with all the atributtes of the collocationPoints class (collocation type and its weights Alpha and Beta, the element shape and the maximum polynomial order)
HexaCollocationPoints *	HexaCP
	Pointer to the HexaCollocationPoints class.
LineCollocationPoints *	LineCP
	Pointer to the LineCollocationPoints class.
SquareCollocationPoints *	SquareCP
	Pointer to the SquareCollocationPoints class.
TetraCollocationPoints *	TetraCP
	Pointer to the TetraCollocationPoints class.
TriangleCollocationPoints *	TriangleCP
	Pointer to the TriangleCollocationPoints class.

Detailed Description

This class is a container class that returns the collocation point coordinates according to the element shape and topological entity.

Note:: For instance, it's possible to get the line collocation point coordinates using the SquareCollocationPoints class. To do this just enter ElementShape = 'SQUARE' and Shape = 'LINE', and so on to the others element types

Author:: Fabiano Fernandes Bargos/Marco Lcio Bittencourt

Date:: March/15/2011

Constructor & Destructor Documentation

collocationPoints::collocationPoints	(	ElementShape_E	ElementShape,
		QuadCollocType_E	CollocationType,
		unsigned long	Alpha,
		unsigned long	Beta,
		unsigned long	MaxOrder
	)

Constructor with all class attributes input as individual parameters.

Parameters:

[in]	ElementShape,:	element shape
[in]	CollocationType,:	specifies the quadrature type for the collocation points
[in]	Alpha,Beta,:	specifies the weights for the calculation of the coordinates of the collocation points
[in]	MaxOrder	- maximum polynomial order

collocationPoints::collocationPoints ( collocationPointsAttributes_S & CPAttrib )

Constructor with collocationPointsAttributes_S struct as parameter.

Parameters:

[in] CPAttributes - attributes for collocation points

collocationPoints::collocationPoints ( collocationPoints & Instance )

Copy-initializer constructor.

Parameters:

[in] Instance - Reference for instance of the collocationPoints class

Member Function Documentation

collocationPointsAttributes_S & collocationPoints::GetCollocationPointsAttributes ( )

returns the collocation points attributes.

Returns:: a struct with attributes of collocation points.

double *const collocationPoints::GetCollocationPointsCoords	(	ElementShape_E	ElementShape,
		ElementShape_E	EntityShape,
		unsigned long	PolyOrder,
		unsigned long &	NumberPoints
	)

Gets the collocation points for a given element shape and polynomial order.

Parameters:

[in]	ElementShape	- element shape.
[in]	EntityShape	- entity shape for which the collocation points must be calculated. If it is TRIANGLE, the element collocation points are calculated; if it is LINE, only the line collocation points are calculated.
[in]	PolyOrder	- polynomial order
[out]	NumberPoints	- Number of points for the polynomial order.

Returns:: a double * const with the points of coordinates.

long collocationPoints::GetCollocationPointsSetNumber	(	ElementShape_E	ElemShape,
		ElementShape_E	EntityShape,
		unsigned long	PolyOrder
	)

Returns the set number of the collocation points for the given polynomial order.

Parameters:

[in]	EntityShape	- entity shape for which the collocation points must be calculated. If it is TRIANGLE, the element collocation points are calculated; if it is LINE, only the line collocation points are calculated.
[in]	PolyOrder	- polynomial order

Returns:: a long type with the set number value.

unsigned long collocationPoints::GetMaxPolyOrder ( ElementShape_E ElemShape )

Returns the maximum polynomial order according to element shape informed.

Parameters:

[in] ElemShape - Element Shape.

Returns:: Maximum polynomial order as an unsigned long.

unsigned long collocationPoints::GetNumberCollocationPoints	(	ElementShape_E	ElementShape,
		ElementShape_E	EntityShape,
		unsigned long	PolyOrder,
		long &	CollocationPointsSetNumber
	)

Returns the number of collocation points for the given polynomial order and the collocation point set where they are stored.

Parameters:

[in]	Shape	- element shape.
[in]	EntityShape	- entity shape for which the number of collocation points must be calculated.
[in]	PolyOrder	- polynomial order for which the number of collocation points is requested.
[out]	CollocationPointsSetNumber	- number of the set where the collocation poins are stored.

Returns:: Returns the number of collocation points.

unsigned long collocationPoints::GetNumberCollocationPointsSets ( ElementShape_E ElementShape )

Returns the number of collocation points sets stored in the class.

Parameters:

[in] ElementShape - element shape.

Returns:: Returns the number of collocation points set.

unsigned long collocationPoints::GetTotalNumberCollocationPoints ( ElementShape_E ElemShape )

Returns the total number of collocation points according to element shape informed.

Parameters:

[in] ElemShape - Element Shape.

Returns:: an unsigned long with value the total number of collocation points.

collocationPoints::operator HexaCollocationPoints & ( )

Cast operator for the reference of the class attribute "HexaCP".

Returns:: reference to the class attribute "HexaCP" of type HexaCollocationPoints

collocationPoints::operator LineCollocationPoints & ( )

Cast operator for the reference of the class attribute "LineCP".

Returns:: reference to the class attribute "LineCP" of type LineCollocationPoints.

collocationPoints::operator QuadCollocType_E ( )

Cast operator for the QuadCollocType field of CPAttributes struct.

Returns:: the value to the QuadCollocType field of CPAttributes struct.

collocationPoints::operator SquareCollocationPoints & ( )

Cast operator for the reference of the class attribute "SquareCP".

Returns:: reference to the class attribute "SquareCP" of type SquareCollocationPoints

collocationPoints::operator TetraCollocationPoints & ( )

Cast operator for the reference of the class attribute "TetraCP".

Returns:: reference to the class attribute "TetraCP" of type TetraCollocationPoints

collocationPoints::operator TriangleCollocationPoints & ( )

Cast operator for the reference of the class attribute "TriangleCP".

Returns:: reference to the class attribute "TriangleCP" of type TriangleCollocationPoints

collocationPoints & collocationPoints::operator= ( collocationPoints & Instance )

Copies the contents of instance to the object.

Parameters:

[in] Instance - instance of the CollocationPoints class

void collocationPoints::Print	(	FILE *	File,
		ElementShape_E	ElementShape,
		ElementShape_E	EntityShape
	)

: Prints the collocation points attributes and values to the given ascii file.

Parameters:

[in]	File	- pointer to the ascii file
[in]	ElementShape	- element shape.
[in]	EntityShape	- entity shape for which the collocation points must be calculated. If it is TRIANGLE, the element collocation points are calculated; if it is LINE, only the line collocation points are calculated.

void collocationPoints::Read	(	FILE *	DefFile,
		unsigned long	GroupNumber,
		ElementShape_E	ElementShape,
		unsigned long	MaxOrder
	)

Reads the collocation points attributes from the .def ascii file.

Parameters:

[in]	DEFFile	- pointer to the .def ascii file
[in]	GroupNumber	- group number.
[in]	ElementShape	- element shape
[in]	MaxOrder	- maximum polynomial order

void collocationPoints::RunCollocationPointsCoords	(	ElementShape_E	ElementShape,
		ElementShape_E	EntityShape,
		BuiltInArray< unsigned long > &	PolyOrder,
		OneIndexTable< unsigned long > &	Indices
	)

Generates all the collocation points according to the polynomial orders given in PolyOrder.

Parameters:

[in]	ElementShape	- the element shape
[in]	EntityShape	- entity shape for which the collocation points must be calculated. If it is TRIANGLE, the element collocation points are calculated; if it is LINE, only the line collocation points are calculated.
[in]	PolyOrder	- element orders for a p-nonuniform mesh in an increasing sequence. For a p-uniform, this array stores only one value
[in]	Indices	- table of tensorization indices for each polynomial order given in PolyOrder

void collocationPoints::SetCollocationPointsAttributes	(	ElementShape_E	ElementShape,
		QuadCollocType_E	CollocationType,
		unsigned long	Alpha,
		unsigned long	Beta,
		unsigned long	MaxOrder
	)

Sets the attributes for the collocation points in out as individual parameters.

Parameters:

[in]	ElementShape,:	element shape
[in]	CollocationType,:	specifies the quadrature type for the collocation points
[in]	Alpha,Beta,:	specifies the weights for the calculation of the coordinates of the collocation points
[in]	MaxOrder	- maximum polynomial order

void collocationPoints::SetCollocationPointsAttributes ( collocationPointsAttributes_S & CPAttrib )

Sets the attributes for the collocation points input as a instance of the CollocationPointsAttributes_S.

Parameters:

[in] CPAttributes - attributes for collocation points

void collocationPoints::SetMaxPolyOrder	(	ElementShape_E	ElemShape,
		unsigned long	MaxOrder
	)

Sets the maximum polynomial according to element shape.

Parameters:

[in]	ElemShape	- ElementShape_E.
[in]	MaxOrder	- maximum polynomial order.

The documentation for this class was generated from the following files:

include/interpolation/collocationpoints/collocationPoints.h
src/interpolation/collocationpoints/collocationPoints.cpp
